Heavy Duty CNC Machining Center
VMC-1480/1680/1690
- FEATURE
- EXPLAIN
- SPECIFICATIONS
- The automatic tool changer(ATC) has a buffering function for stable and smooth tool change.
- Great cutting capability, combined with superior accuracy and performance which eases milling and boring operations.
- The X , Y and Z axes employ high precision class C3 ball screws, coupled with a double nut design for precise traversing.
- Three axes BOX ways are hardened, precision ground and coated with Turcite-B ensuring high positioning and repeatability accuracy.
- High rigidity, high accuracy and high torque output spindle to offer long nose option selection for special cutting.
- The spindle is dynamically balanced accuracy balancing equipment for best machining accuracy. The high torque gear head is option for heavy cutting.

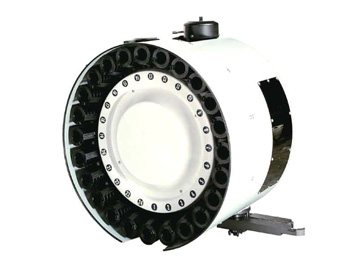

Arm Type Magazine (Optional)
X axis combined the saddle together for heavy structure and best rigidity. (even if the saddle is more wide, it is not powerful enough without combining together.) Combining together will be more double powerful. Z axis is the same as X axis.
Chain Type Magazine (Optional)
For large machines require more tools, the magazine can carry up more tools and rapidly move the required tool to tht tool changer in time for the next machining operation. Chains are supported on both sides, movement is highly stable which extends the lifespan of the chain. The special cam used to drive the magazine have smooth forward/reverse movement, high torsional stiffness and ecxellent repeatability.
Chain Type Magazine (Optional)
4 Slide way High rigidity base Structure with heavy duty and table loading. Hardend and ground boxways into Meehanite casting.
Specifications
| MODEL | UNIT | VMC-1480 | VMC-1680 | VMC-1690 | |
|---|---|---|---|---|---|
| Table | Table Surface | mm (Inch) | 750 x 1600 (29.5” x 63”) |
750 x 1600 (29.5” x 63”) |
850 x 1700 (33.5" x 67") |
| T-Slots | mm | 22 x 5 x 150 | 22 x 5 x 150 | 22 x 5 x 150 | |
| Table Loading | kgs | 1500 | 1800 | 1800 | |
| Travel | Travel of X/Y/Z-Axis | mm(Inch) | 1400 x 800 x 700 (55" x 31.5" x 27.5") |
1600 x 800 x 700 (63" x 31.5" x 27.5") |
1600 x 900 x 700 (63" x 34.5" x 27.5") |
| Spindle Nose to Table | mm(Inch) | 150~850 (33.4”) |
150~850 (33.4”) |
150~850 (33.4”) |
|
| Spindle Center to Column Surface | mm(Inch) | 910(35.8”) | 910( 35.8”) | 910(35.8") | |
| Door Opening Width | mm(Inch) | 1400(55”) | 1600(63”) | 1600(63") | |
| Spindle | Spindle Taper | STD:BT40 / OPT:BT50 |
STD:BT40 / OPT:BT50 |
STD:BT40 / OPT:BT50 |
|
| Spindle Speed | rpm | BT40 (STD:8000 / OPT:10000) BT50(STD:6000 / OPT:8000) |
BT40 (STD:8000 / OPT:10000) BT50(STD:6000 / OPT:8000) |
BT40 (STD:8000 / OPT:10000) BT50(STD:6000 / OPT:8000) |
|
| Rapid Feed Rate | M/min | 15(Box X/Y), 12(Box Z) |
15(Box X/Y), 12(Box Z) |
15(Box X/Y), 12(Box Z) |
|
| Cutting Feed Rate | mm/min | 5-7000 | 5-7000 | 5-7000 | |
| Motor | Spindle Motor | HP | 20 | 20 | 20 |
| X/Y/Z - Axes Motor | kw | 3/3/3 | 3/4/3 | 3/4/3 | |
| Miscellaneous | ATC Type | STD:Arm 24T/ OPT:Arm 32T |
STD:Arm 24T/ OPT:Arm 32T |
STD:Arm 24T/ OPT:Arm 32T |
|
| Power Requirement | kw | 40 | 40 | 40 | |
| Air Pressure | Kgs/cm2 | 6 | 6 | 6 | |
| Cooling Motor | HP | 1.5 | 1.5 | 1.5 | |
| Cooling Tank Capacity | L | 580 | 580 | 580 | |
| Machine Weight | kgs | 12800 | 14200 | 14500 | |
| Machine Size (L x W x H) | mm | 3900 x 3470 x 2900 | 4150 x 3470 x 2900 | 4150 x 3470 x 2900 | |
| Control | FANUC / MITSUBISHI / SIEMENS | ||||
